Colloidal Silver Water Generator "SilverPro©"

Model GM550 August 9, 2010

Features and Functions

Alphanumeric Status Display for indicating colloidal silver and setup parameters.
conductivity referencing circuit that continuously monitors the water electronically.
Variable PPM (Parts Per Million) settings shuts itself off automatically when it reaches
the desired strength makes SilverPro© a genuine 'set and forget' system.
Powered by AC/DC wall adapter.
48 Volt DC output (used for ionic Colloidal Silver DC generation)
Digitally Adjustable constant current output from ~0.1 mA to 15mA. (0.1mA steps)
Alternating polarity voltage swap with djustable frequency eliminates build-up on the electrodes and the need for stirring.
DC-DC converter boosts the input 9 -12 Volt to the 48 Volts DC required by The Silver Colloid Maker.
3 year limited warranty

The SilverPro© is a state-of-the-art product powered by 8-12 volt DC adapter. Its functions are totally controlled by a microprocessor to guarantee exact and accurate operation.

Use the SilverPro© at the lowest current setting (< 1.5mA) to produce the highest quality colloidal silver with the smallest possible particle size.

The SilverPro© Colloidal Silver Generator makes the highest quality Ionic Colloidal Silver using 99.99% pure silver electrodes. It has variable PPM (Parts Per Million) settings and shuts itself off automatically when it reaches the desired strength.

Adjustable frequency voltage polarity swap dispersing the atoms as they are being released, very little agglomeration occurs and the result is crystal clear and colorless ionic/colloidal silver of the smallest particle size.

Color is generally attributed to particle agglomeration unless it is from using mineralized water or a contaminated production vessel.

A unique circuit design utilizes a proprietary DC-DC converter which boosts the input voltage of 9 - 12 Volts to the 48 Volts DC required by SilverPro© to quick start the colloidal process.

SilverPro© uses a conductivity referencing circuit that continuously monitors the water electronically , It has variable PPM (Parts Per Million) settings and shuts itself off automatically when it reaches the desired strength.

The resulting Silver Colloid and Ionic Solution (Silver Hydrosol) is very pure, stable and clear. It is NOT light sensitive.

Specifications:
Optional Input Voltage: 8 - 12 Volts DC @ 500mA Wall Transformer/Adapter, Automobile Battery.
Output Voltage at SilverPro© Probes: 48 Volts DC, (+/- 1) Volt Constant-Voltage Output
Output Current (adjustable Constant-Current): 0.1mA - 15mA (+/- 0.5mA).

Ionic-Colloid Silver Production: 3-20 PPM (parts per million) for 120 minutes (2 hours) for 16 ounces distilled water.
Ionic-Colloid Silver Particle Size: Mostly ionic, with colloidal particles in the range of 0.005 - 0.015 microns when made as directed.
Ionic-Colloid Silver Colour: Clear.
Silver Wire Life: Can make 50-75 gallons of 5-10 PPM ionic-colloidal silver per set of Silver Wires, when made as directed.

The Fine Silver Wires are 14 AWG (1.63 mm or 0.064" dia.) x 8" long (1.5 mm diameter x 20.3 cm long) and are constructed of only Pure Fine (.9999 or 99.99% pure) Silver Wire.

Weight of The SilverPro© unit is only a few ounces - very lightweight.

Each SilverPro© comes complete with:
One (1) control unit
Two (2) .9999 (4 Nine Grade) Pure Fine Silver Wire Electrodes
One (1) Silver Wire Holder
One (1) Soft carrying case
Operating manual.
One (1) AC-DC Wall Adaptor. (A $30 value).
3 Year Parts and Labor Warranty on CPU (internally mounted components)

International Voltage (220 or 240 Volt Mains) Requirements:
The SilverPro© ships with an International Wall Adaptor intended for any voltage from 110VAC 60 Hz (North America) to 220/240 Volt AC 50 Hz Mains .

Options for Powering the SilverPro©
In the event of a power outage here are some options for powering the Silver Maker other than with its 9-Volt DC Alkaline Battery:
The SilverPro©may be operated directly from a 12 Volt DC Battery like from an automobile cigarette lighter. You will need to purchase an Adapter cord which plugs into the cigarette lighter and has a Centre Positive, 2.1 mm Plug, like from Radio Shack®.

User Manual

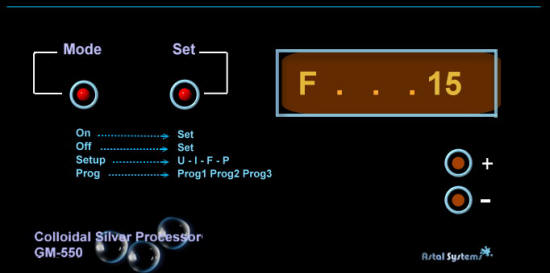

Operation Modes

After connecting the AC adapter to the SilverPro© the led displays "AC" ,

Press the "Mode" key to scroll through "On - Off - Setup" use the Set key to select the required mode.

By selecting "ON" mode the the SilverPro© start the process of generating the colloidal using the your preset Setup parameters. The unit allways recall the last used presets. During it's operation the display scrolls between the total minutes elapsed , the present electrical current through the emulsion measured in milliamperes (0.1 milliampere resolution) and voltage measured across the emulsion ( 1 Volt resolution) which represent it's conductivity .

When finally it reaches a predefined threshold set by the "U" parameter (defined in the "Setup" process ) it displays "Ready" and 5 voice alerts to indicate the end of the process.

With SilverPro© you can precisely fix the requireds Colloide density at which level it will automaticaly stop the process and shut the unit.

Off

Turn off the unit displayes "AC" as long as the power adapter is connected to the unit and to the mains.

Setup

After selecting this mode, use the "Set" key to scroll between the three sub setup modes

"I" - to set the constant current for the process

"F" - to set the swap frequency of the process

"U" - to set the auto shut off voltage of the process

To set a higher or lower level for each parameters use the "Plus" or "Minus" keys .

The letters shows in a right justified manner side of the Display and the numeric values are left justified.

Mode	Set	Display	Description
ON	+	Time, Current,Voltage	Scrolls display 2 Sec for parameter
Off	+	Ac	When connected to the mains
Setup	+	I	Set Max constant current for process	Use +/- to change
	+	F	Set swap voltage frequency	Use +/- to change
	+	U	Set Lower voltage threshold	Use +/- to change

* Pressing the Mode key while in setup mode switch back to On mode.

Setup Considerations

"U" - Set lower voltage values across the colloidal solution to achieve higher PPM rates.

20PPM ~ 2 Volts , 5PPM ~ 7 Volts.

"I" - Set lower values to achieve cleaner more stable colloidal solution , the lower the constant
settings the longer the process last( 2 - 6 Hours )

"F" - Set the voltage swap frequency between 1 Minute - 120 Minutes to obtain pure, stable
and clear Colloidal Solution not light sensitive.typical value for this parameter is 15Min.
longer time settings would probably cause agglomeration on the silver Electrodes.

COMPLETE SYSTEM FROM $165

GM550 SilverPro© $165. Includes one pair .9999 silver electrodes, AC adapter. 9 volt battery. (includes S&H in US and Canada)

Extra pair 8" .9999 Silver Electrode Set $30.CS)
